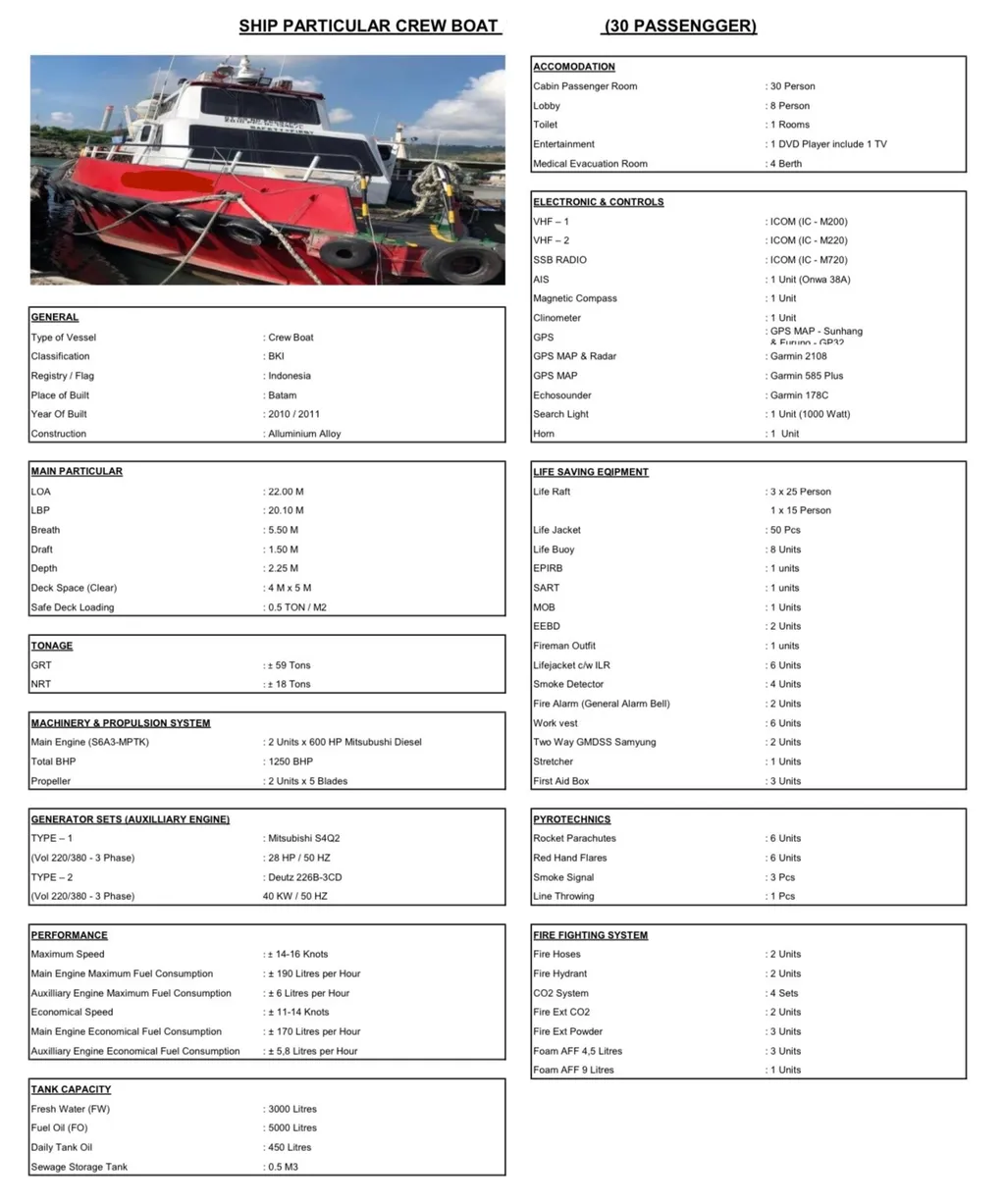

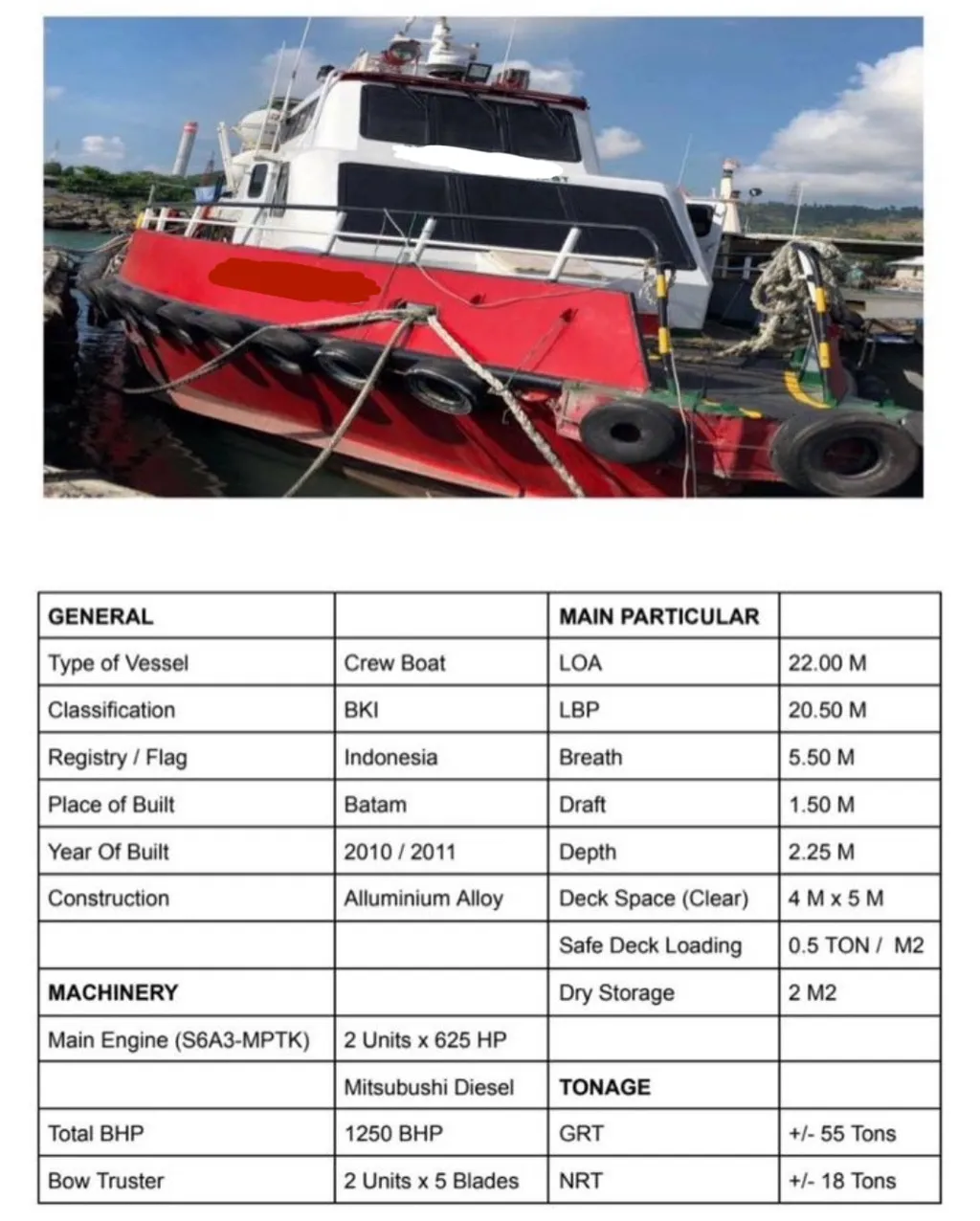

Deskripsi
Type of Vessel : Crew Boat
Classification : BKI
Registry / Flag : Indonesia
Place of Built : Batam
Year of Built : 2010 / 2011
Construction : Aluminium Alloy
MAIN PARTICULAR
LOA : 22.00 M
LBP : 20.10 M
Breath : 5.50 M
Draft : 1.50 M
Depth : 2.25 M
Deck Space (Clear) : 4 M x 5 M
Safe Deck Loading : 0.5 TON / M2
TONAGE
GRT : 59 Tons
NRT : 18 Tons
MACHINERY & PROPULSION SYSTEM
Main Engine (S6A3-MPTK) : 2 Units x 600 HP Mitsubishi Diesel
Total BHP : 1250 BHP
Propeller : 2 Units x 5 Blades
GENERATOR SETS (AUXILIARY ENGINE)
TYPE – 1 : Mitsubishi S4Q2
(Vol 220/380 - 3 Phase) : 28 HP / 50 Kva
TYPE – 2 : Deutz 226B-3CD
(Vol 220/380 - 3 Phase) : 40 KW / 50 Kva
PERFORMANCE
Maximum Speed : 14-16 Knots
Main Engine Maximum Fuel Consumption : ± 190 Litres per Hour
Auxiliary Engine Average Fuel Consumption : ± 6 Litres per Hour
Economical Speed : 11-14 Knots
Main Engine Economical Fuel Consumption : ± 170 Litres per Hour
Auxiliary Engine Economical Fuel Consumption : ± 5.8 Litres per Hour
TANK CAPACITY
Fresh Water (FW) : 3000 Litres
Fuel Oil (FO) : 5000 Litres
Daily Tank Oil : 450 Litres
Sewage Storage Tank : 0.5 M3
ACCOMODATION
Cabin Passenger Room : 30 Person
Lobby : 8 Person
Toilet : 1 Room
Entertainment : 1 DVD Player include 1 TV
Medical Evacuation Room : 4 Berth
ELECTRONIC & CONTROLS
VHF – 1 : ICOM (IC – M200)
VHF – 2 : ICOM (IC – M220)
SSB RADIO : ICOM (IC – M720)
AIS : 1 Unit (Onwa 38A)
Magnetic Compass : 1 Unit
Clinometer : 1 Unit
GPS : GPS MAP – Sunhang & Furuno – GP32
GPS MAP & Radar : Garmin 2106
GPS MAP : Garmin 585 Plus
Echosounder : Garmin 178C
Search Light : 1 Unit (1000 Watt)
Horn : 1 Unit
LIFE SAVING EQUIPMENT
Life Raft : 3 x 25 Person, 1 x 15 Person
Life Jacket : 50 Pcs
Life Buoy : 8 Units
EPIRB : 1 Units
SART : 1 Units
MOB : 1 Units
EEBD : 2 Units
Fireman Outfit : 1 Units
Lifejacket c/w ILR : 6 Units
Smoke Detector : 4 Units
Fire Alarm (General Alarm Bell) : 2 Units
Work vest : 6 Units
Two Way GMDSS Samyung : 2 Units
Stretcher : 1 Units
First Aid Box : 3 Units
PYROTECHNICS
Rocket Parachutes : 6 Units
Red Hand Flares : 6 Units
Smoke Signal : 3 Pcs
Line Throwing : 1 Pcs
FIRE FIGHTING SYSTEM
Fire Hoses : 2 Units
Fire Hydrant : 2 Units
CO2 System : 4 Sets
Fire Ext CO2 : 2 Units
Fire Ext Powder : 3 Units
Foam AFF 4.5 Litres : 3 Units
Foam AFF 9 Litres : 1 Units
Juga bisa di sewa 20 juta per hari
