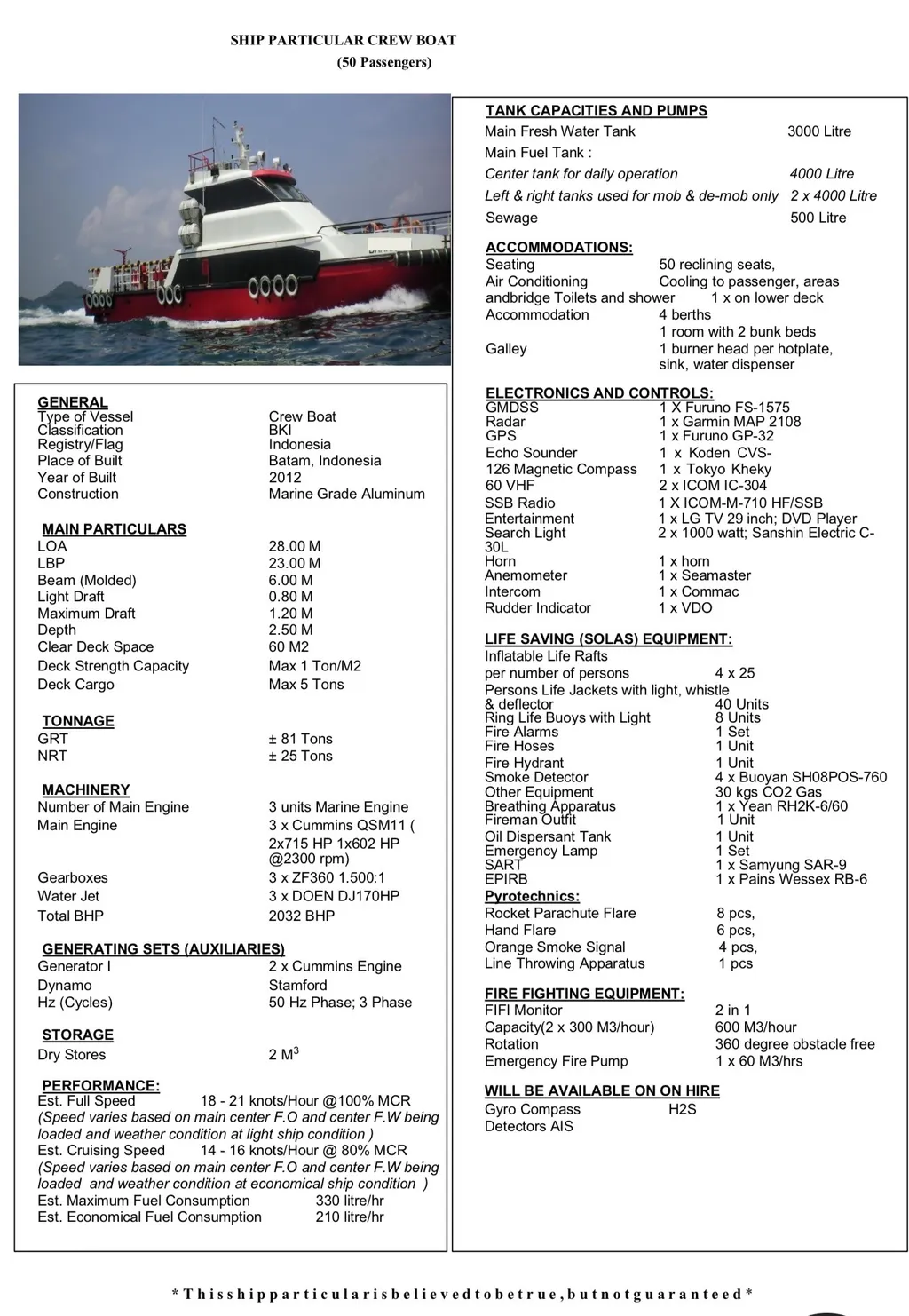

Deskripsi
TANK CAPACITIES AND PUMPS
Main Fresh Water Tank : 3000 Litre
Main Fuel Tank :
Center tank for daily operation : 4000 Litre
Left & right tanks used for mob & de-mob only : 2 x 4000 Litre
Sewage : 500 Litre
ACCOMMODATIONS

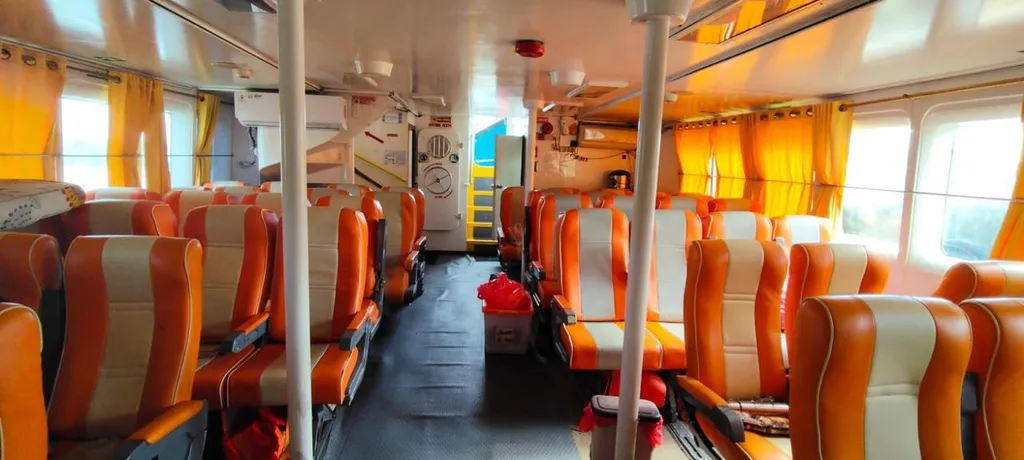

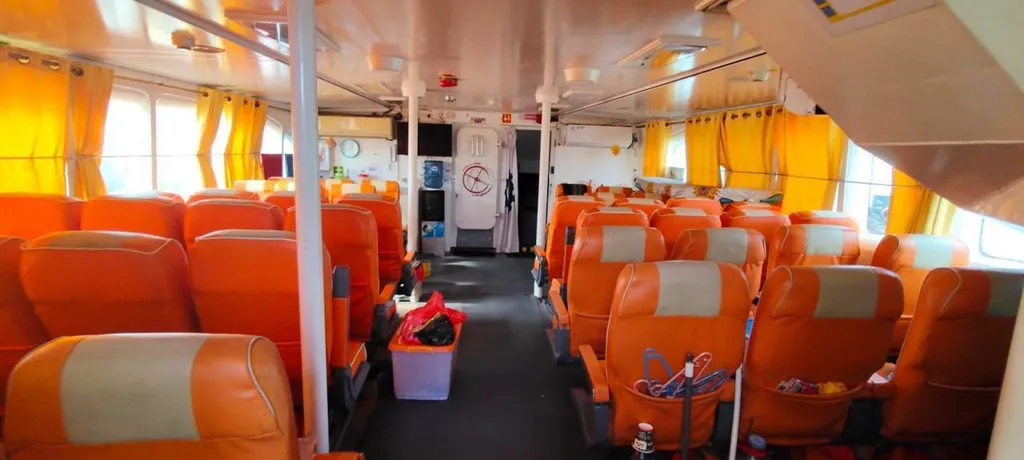

Seating : 50 reclining seats
Air Conditioning : Cooling to passenger areas and bridge, toilets and shower (1 x on lower deck)
Accommodation : 4 berths
Galley : 1 room with 2 bunk beds, 1 burner head per hotplate, sink, water dispenser
GENERAL

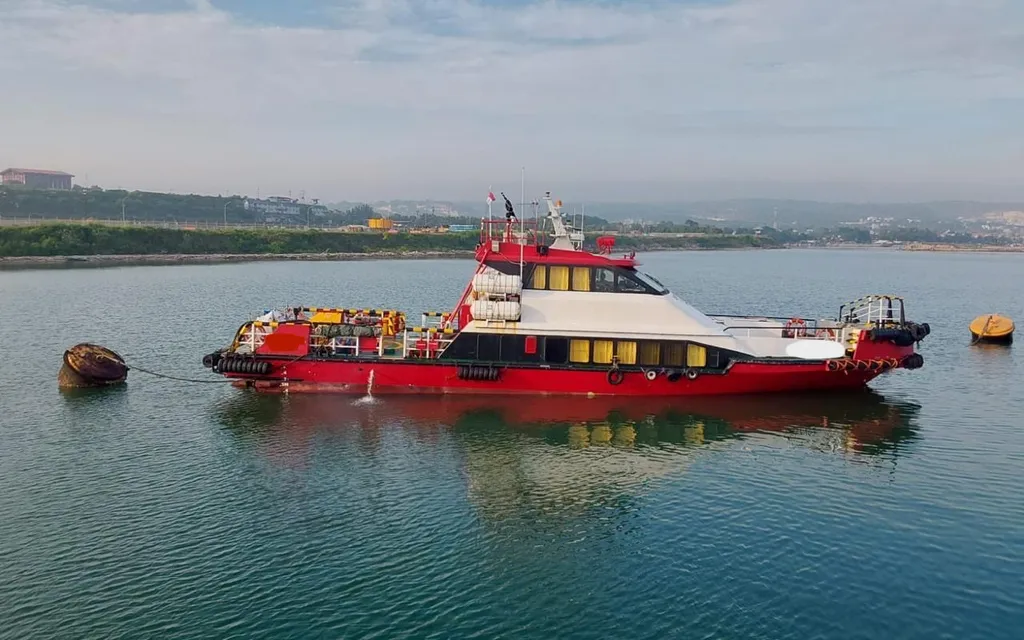

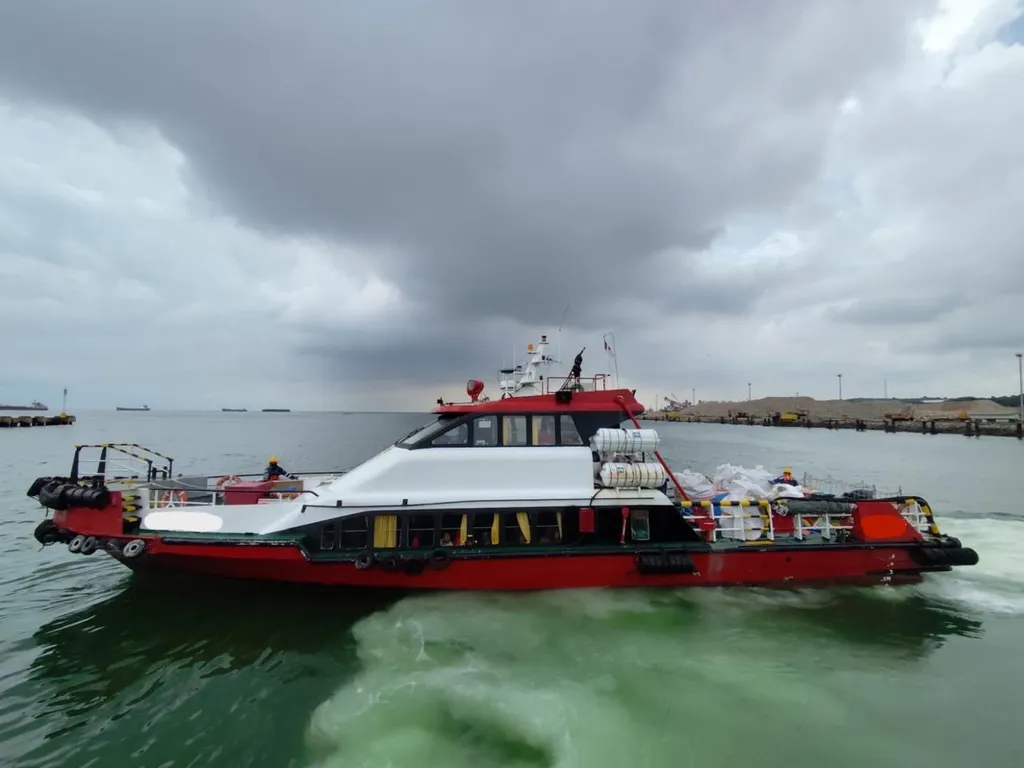

Type of Vessel : Crew Boat
Classification : BKI
Registry/Flag : Indonesia
Place of Built : Batam, Indonesia
Year of Built : 2012
Construction : Marine Grade Aluminum
MAIN PARTICULARS
LOA : 28.00 M
LBP : 23.00 M
Beam (Molded) : 6.00 M
Light Draft : 0.80 M
Maximum Draft : 1.20 M
Depth : 2.50 M
Clear Deck Space : 60 M2
Deck Strength Capacity : Max 1 Ton/M2
Deck Cargo : Max 5 Tons
TONNAGE
GRT : ± 81 Tons
NRT : ± 25 Tons
MACHINERY
Number of Main Engine : 3 units Marine Engine
Main Engine : 3 x Cummins QSM11 (2 x 715 HP, 1 x 602 HP @2300 rpm)
Gearboxes : 3 x ZF360 1.500:1
Water Jet : 3 x DOEN DJ170HP
Total BHP : 2032 BHP
GENERATING SETS (AUXILIARIES)
Generator I : 2 x Cummins Engine
Dynamo : Stamford
Hz (Cycles) : 50 Hz Phase; 3 Phase
STORAGE
Dry Stores : 2 M3
PERFORMANCE
Est. Full Speed : 18 – 21 knots/hour @100% MCR
(Speed varies based on main center F.O and center F.W being loaded and weather condition at light ship condition)
Est. Cruising Speed : 14 – 16 knots/hour @80% MCR
(Speed varies based on main center F.O and center F.W being loaded and weather condition at economical ship condition)
Est. Maximum Fuel Consumption : 330 litre/hr
Est. Economical Fuel Consumption : 210 litre/hr
ELECTRONICS AND CONTROLS
GMDSS : 1 x Furuno FS-1575
Radar : 1 x Garmin MAP 2108
GPS : 1 x Furuno GP-32
Echo Sounder : 1 x Koden CVS-126
Magnetic Compass : 1 x Tokyo Kheky
60 VHF : 2 x ICOM IC-304
SSB Radio : 1 x ICOM-M-710 HF/SSB
Entertainment : 1 x LG TV 29 inch; DVD Player
Search Light : 2 x 1000 watt; Sanshin Electric C-30L
Horn : 1 x horn
Anemometer : 1 x Seamaster
Intercom : 1 x Commac
Rudder Indicator : 1 x VDO
LIFE SAVING (SOLAS) EQUIPMENT
Inflatable Life Rafts (per number of persons) : 4 x 25
Persons Life Jackets with light, whistle & deflector : 50 Units
Ring Life Buoys with Light : 8 Units
Fire Alarms : 1 Set
Fire Hoses : 1 Unit
Fire Hydrant : 1 Unit
Smoke Detector : 4 x Buoyan SHO8POS-760
Other Equipment : 30 kgs CO2 Gas
Breathing Apparatus : 1 x Yean RH2K-6/60
Fireman Outfit : 1 Unit
Oil Dispersant Tank : 1 Unit
Emergency Lamp : 1 Set
SART : 1 x Samyung SAR-9
EPIRB : 1 x Pains Wessex RB-6
PYROTECHNICS
Rocket Parachute Flare : 8 pcs
Hand Flare : 6 pcs
Orange Smoke Signal : 4 pcs
Line Throwing Apparatus : 1 pcs
FIRE FIGHTING EQUIPMENT
FIFI Monitor : 2 in 1
Capacity (2 x 300 M3/hour) : 600 M3/hour
Rotation : 360 degree obstacle free
Emergency Fire Pump : 1 x 60 M3/hr
WILL BE AVAILABLE ON SHIP
Gyro Compass
Detectors AIS
H2S
Juga bisa di sewa 30 juta per hari
