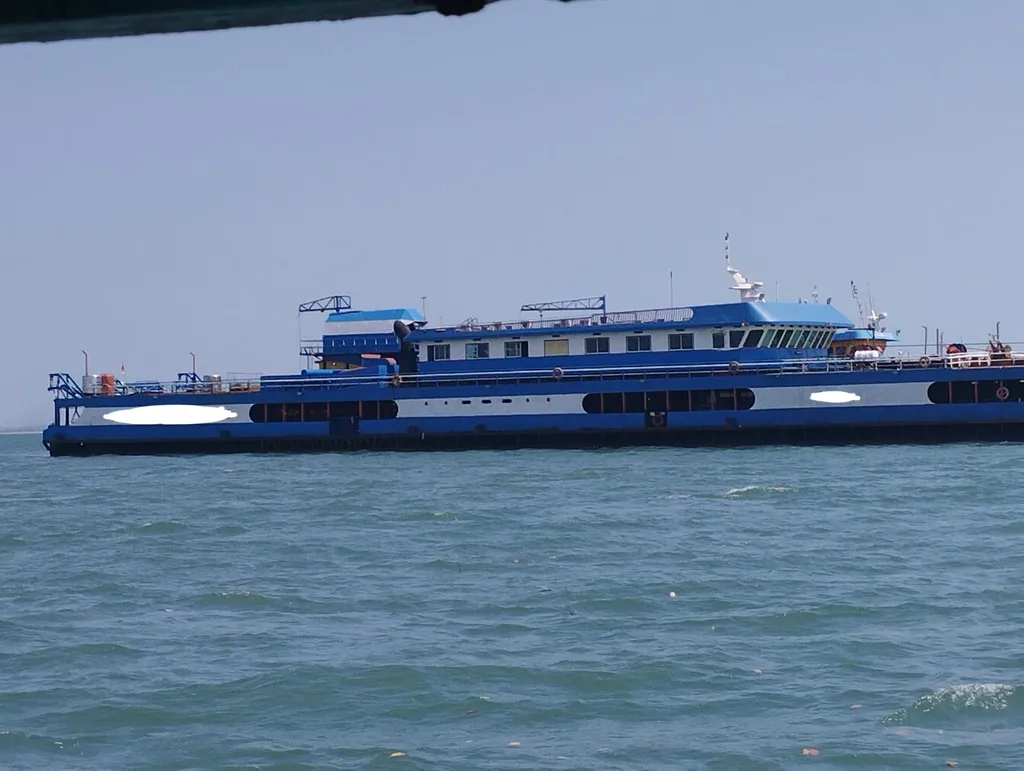

Kapal Isap 98 Meter

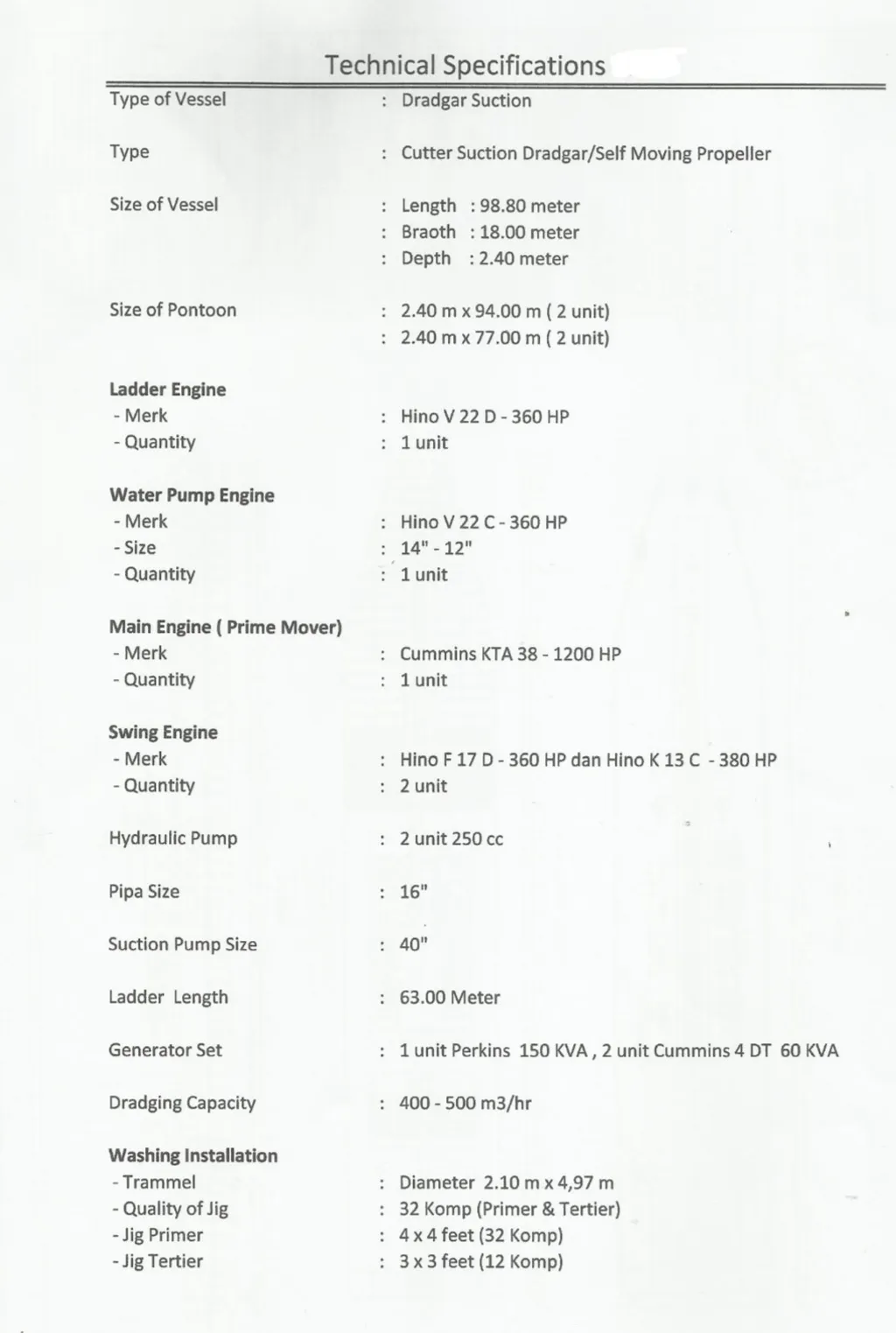

Type of Vessel : Dradgar Suction
Type : Cutter Suction Dradgar / Self Moving Propeller

Size of Vessel
Length : 98.80 meter
Breadth : 18.00 meter
Depth : 2.40 meter

Size of Pontoon
2.40 m x 94.00 m (2 unit)
2.40 m x 77.00 m (2 unit)

Ladder Engine
Merk : Hino V 22 D – 360 HP
Quantity : 1 unit
Water Pump Engine
Merk : Hino V 22 C – 360 HP
Size : 14" – 12"
Quantity : 1 unit
Main Engine (Prime Mover)
Merk : Cummins KTA 38 – 1200 HP

Quantity : 1 unit
Swing Engine
Merk : Hino F 17 D – 360 HP dan Hino K 13 C – 380 HP

Quantity : 2 unit
Hydraulic Pump : 2 unit 250 cc
Pipa Size : 16"
Suction Pump Size : 40"
Ladder Length : 63.00 meter

Generator Set
1 unit Perkins 150 KVA
2 unit Cummins 4 DT 60 KVA
Dredging Capacity : 400 – 500 m³/hr
Washing Installation

Trammel : Diameter 2.10 m x 4.97 m
Quality of Jig : 32 Komp (Primer & Tertier)
Jig Primer : 4 x 4 feet (32 Komp)
Jig Tertier : 3 x 3 feet (12 Komp)
