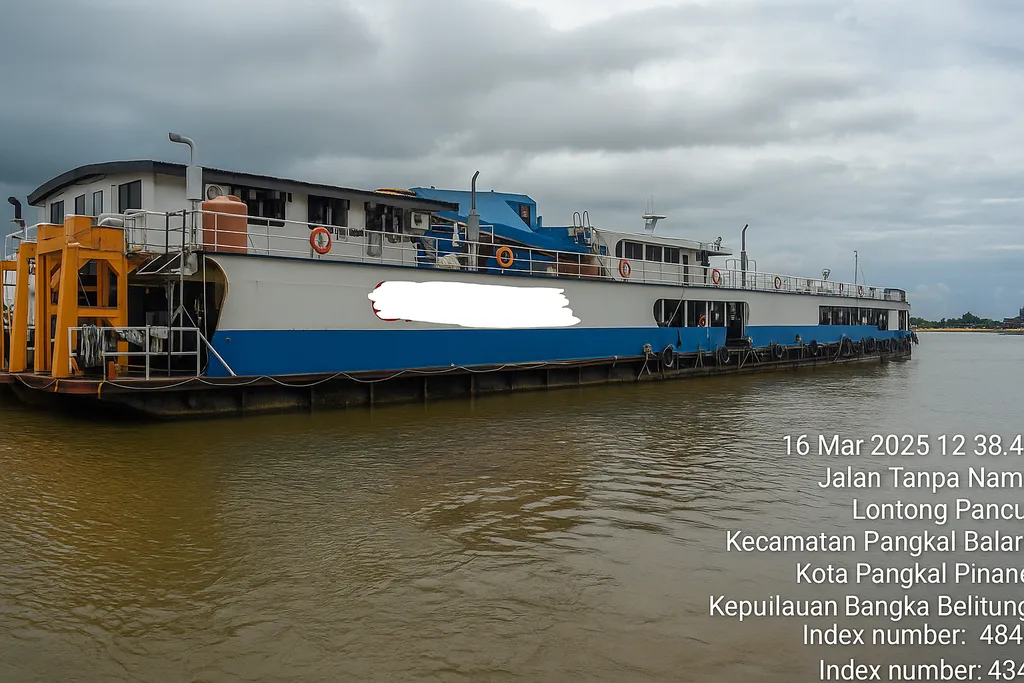

Kapal Keruk Hisap dengan Pemotong Tahun 2009

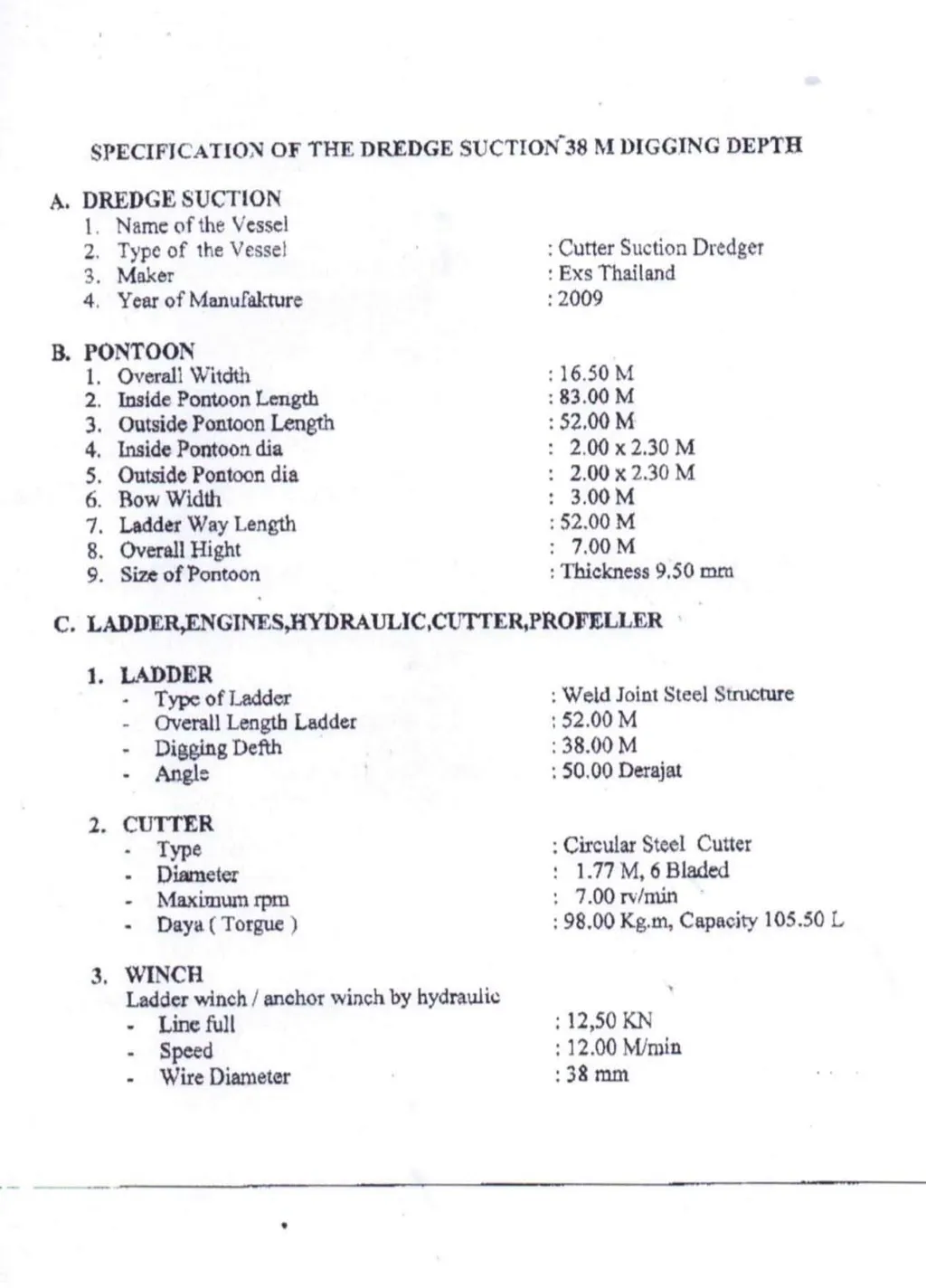

Type of the Vessel : Cutter Suction Dredger
Maker : Exs Thailand
Year of Manufacture : 2009
B. PONTOON
Overall Width : 16.50 M
Inside Pontoon Length : 83.00 M
Outside Pontoon Length : 52.00 M
Inside Pontoon dia : 2.00 x 2.30 M
Outside Pontoon dia : 2.00 x 2.30 M
Bow Width : 3.00 M
Ladder Way Length : 52.00 M
Overall Height : 7.00 M
Size of Pontoon : Thickness 9.50 mm
C. LADDER, ENGINES, HYDRAULIC, CUTTER, PROPELLER

LADDER
Type of Ladder : Weld Joint Steel Structure
Overall Length Ladder : 52.00 M
Digging Depth : 38.00 M
Angle : 50.00 Derajat

CUTTER
Type : Circular Steel Cutter
Diameter : 1.77 M, 6 Bladed
Maximum rpm : 7.00 rv/min
Daya (Torque) : 98.00 Kg.m, Capacity 105.50 L
WINCH (Ladder winch / anchor winch by hydraulic)

Line full : 12,50 KN
Speed : 12.00 M/min
Wire Diameter : 38 mm
