Deskripsi
Harga yang tertera sudah termasuk:
-1 unit Tongkang Tahun 2025
-1 unit Tugboat Tahun 2025
Penawaran berlaku untuk pembelian kedua kapal sekaligus, tidak dijual terpisah.

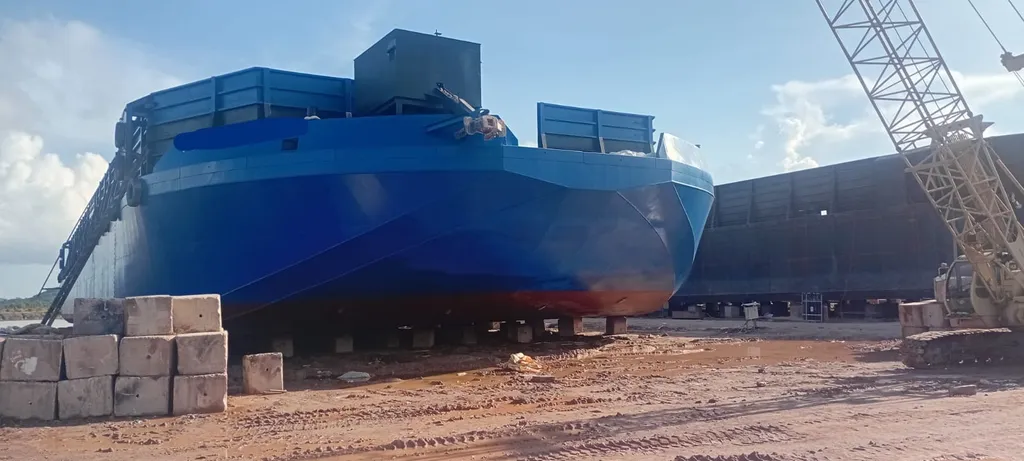

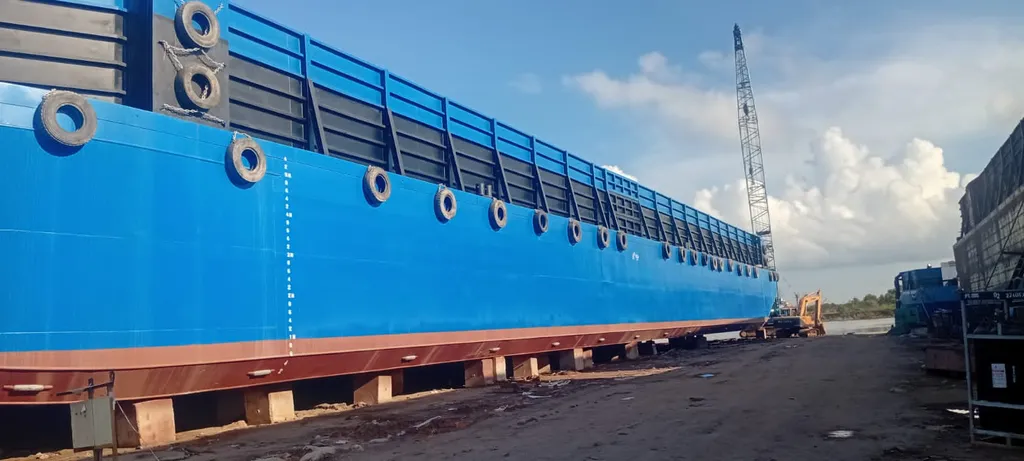

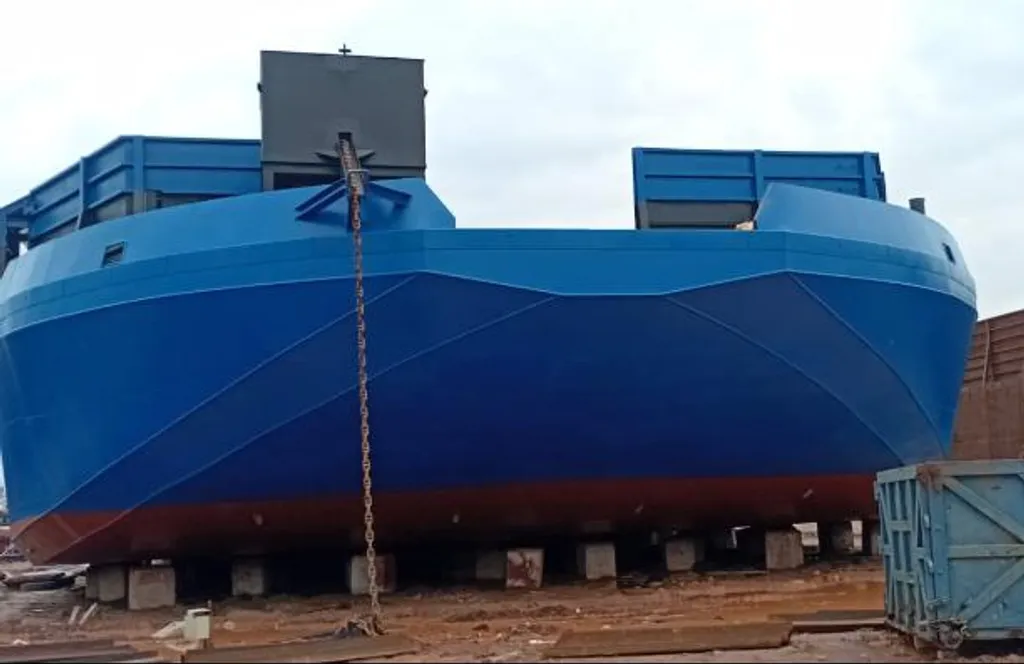

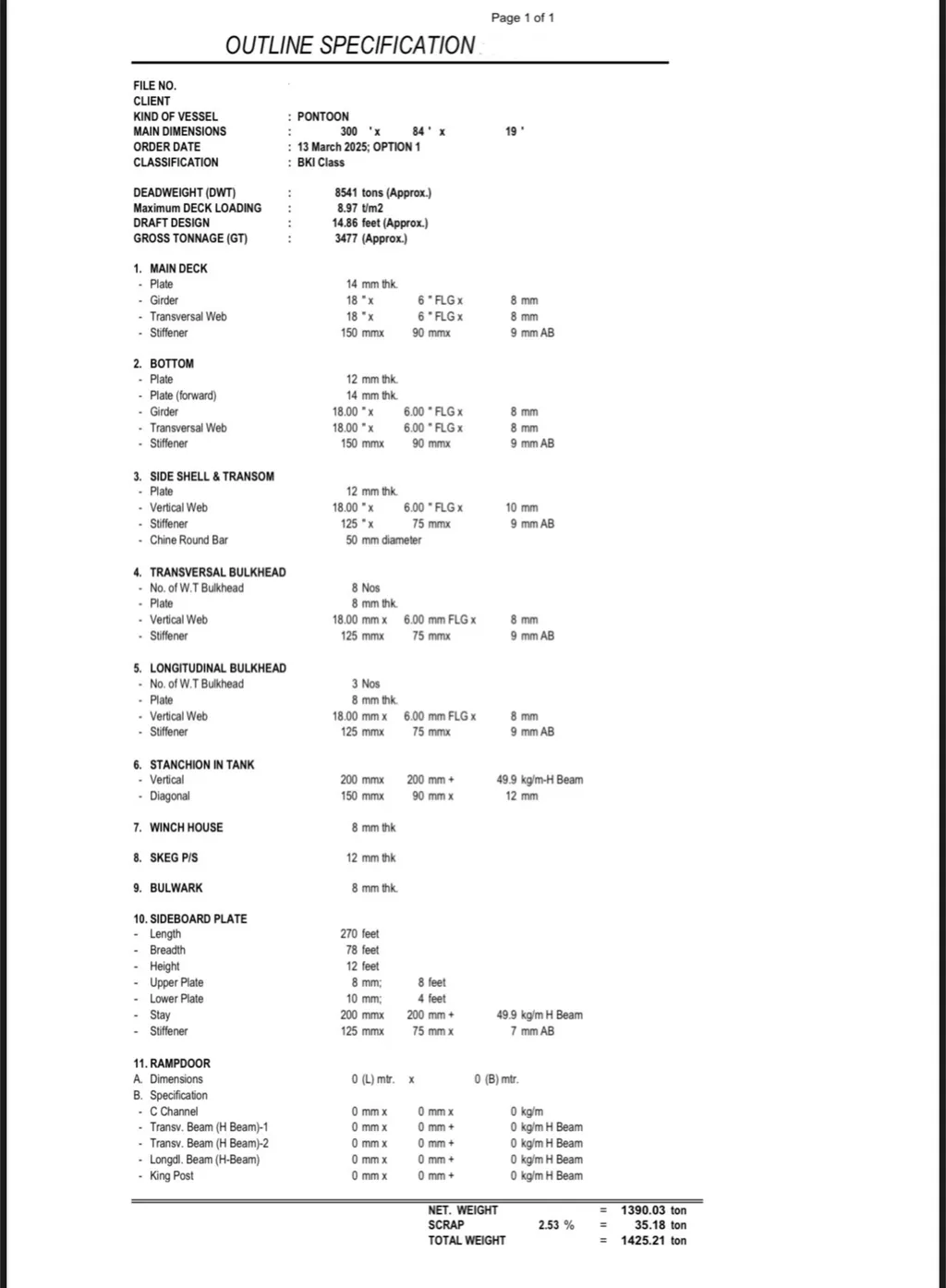

Ship Particular (Barge)
KIND OF VESSEL: Pontoon
MAIN DIMENSIONS: 300’ × 84’ × 19’
ORDER DATE: 13 March 2025 (Option 1)
CLASSIFICATION: BKI Class
DEADWEIGHT (DWT): 8,541 tons (approx.)
Maximum Deck Loading: 8.97 ton/m²
Draft Design: 14.86 feet (approx.) ≈ 4.53 m
Gross Tonnage (GT): 3,477 (approx.)
1. MAIN DECK
Plate: 14 mm thick
Main Plate: 18” × 6” FLG × 8 mm
Transversal Web: 18” × 6” FLG × 8 mm
Stiffener: 150 mm × 90 mm × 9 mm AB
2. BOTTOM
Plate: 12 mm thick
Plate (forward): 14 mm thick
Girder: 18.00 m × 6.00 m FLG × 8 mm
Transversal Web: 18.00 m × 6.00 m FLG × 8 mm
Stiffener: 150 mm × 90 mm × 9 mm AB
3. SIDE SHELL & TRANSOM
Plate: 12 mm thick
Vertical Web: 18.00 m × 6.00 m FLG × 10 mm
Stiffener: 125 mm × 75 mm × 9 mm AB
Chine Round Bar: 50 mm diameter
4. TRANSVERSAL BULKHEAD
No. of W.T Bulkhead: 8 Nos
Plate: 8 mm thick
Vertical Web: 18.00 m × 6.00 m FLG × 8 mm
Stiffener: 125 mm × 75 mm × 9 mm AB
5. LONGITUDINAL BULKHEAD
No. of W.T Bulkhead: 3 Nos
Plate: 8 mm thick
Vertical Web: 18.00 m × 6.00 m FLG × 8 mm
Stiffener: 125 mm × 75 mm × 9 mm AB
6. STANCHION IN TANK
Vertical: 200 mm × 200 mm + 49.9 kg/m H Beam
Diagonal: 150 mm × 90 mm × 12 mm
7. WINCH HOUSE
Plate: 8 mm thick
8. SKEG P/S
Plate: 12 mm thick
9. BULWARK
Plate: 8 mm thick
10. SIDEBOARD PLATE
Length: 270 feet (≈ 82.30 m)
Breadth: 78 feet (≈ 23.77 m)
Height: 12 feet (≈ 3.66 m)
Upper Plate: 8 mm × 8 feet
Lower Plate: 10 mm × 4 feet
Stay: 200 mm × 200 mm + 49.9 kg/m H Beam
Stiffener: 125 mm × 75 mm × 7 mm AB
11. RAMPDOOR
Dimensions: (Not applicable)
Beams, Channels, King Post: Not applicable
WEIGHT SUMMARY
Net Weight: 1,390.03 tons
Scrap (2.53%): 35.18 tons
Total Weight: 1,425.21 tons
CONVERTED DIMENSIONS (METRIC)
Length: 91.44 m
Breadth: 25.60 m
Depth: 5.79 m
Draft Design: 4.53 m

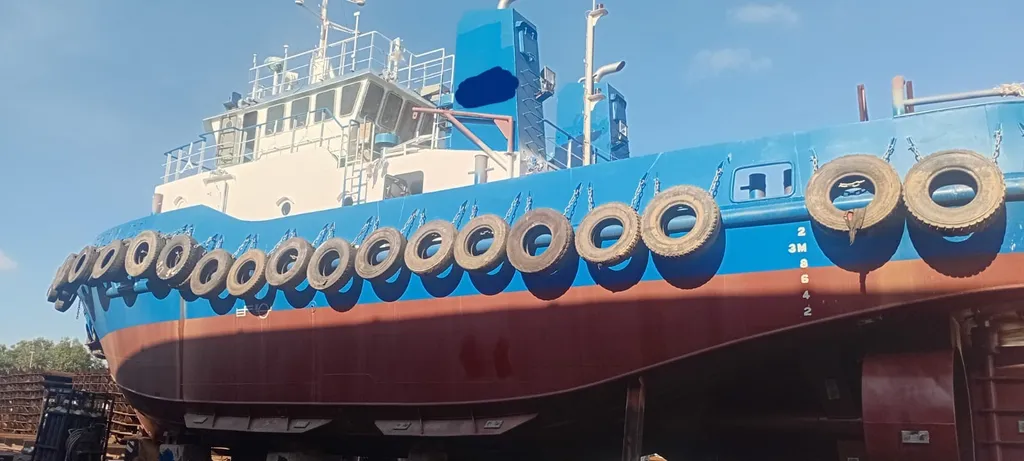

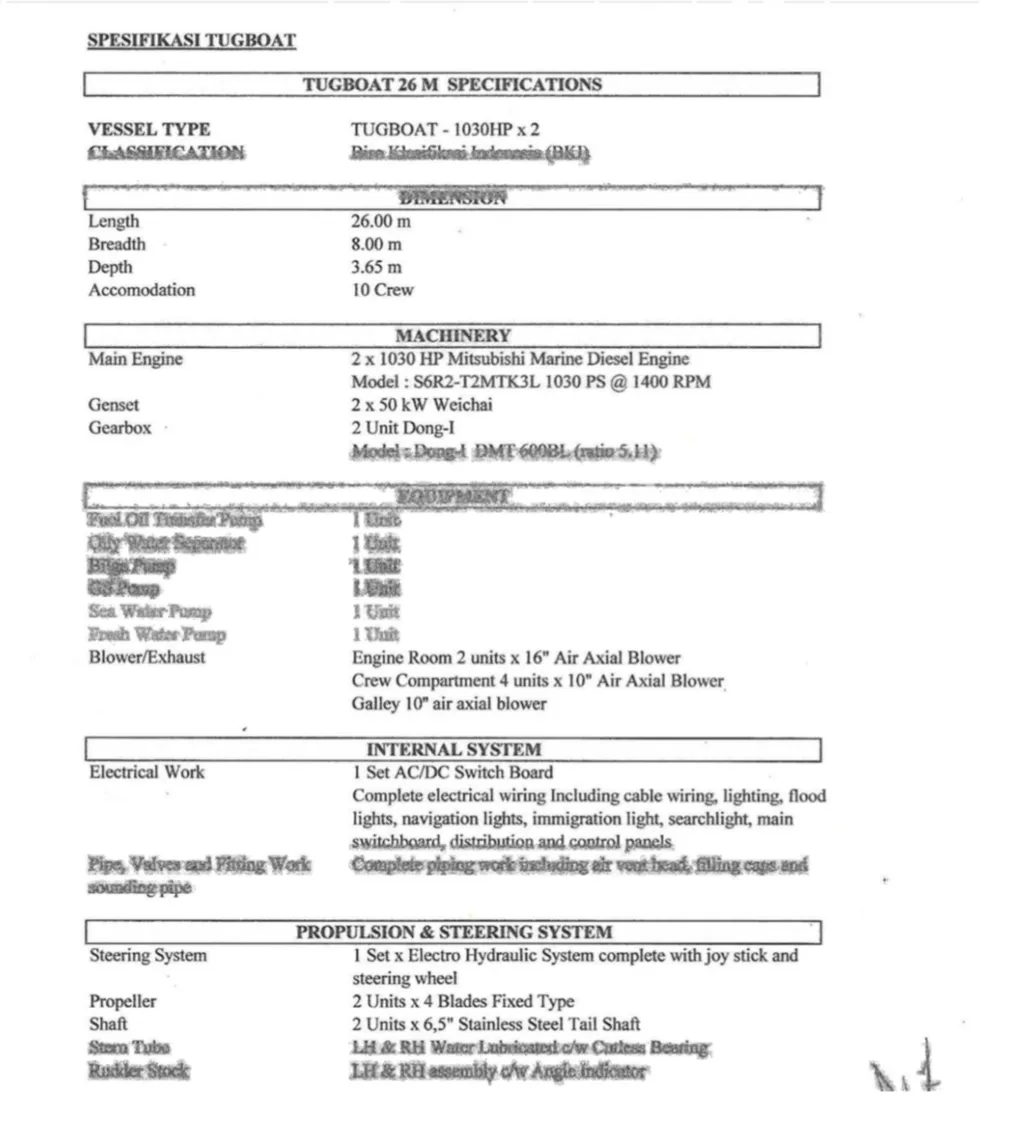

VESSEL TYPE: Tugboat – 1030 HP × 2
CLASSIFICATION: Biro Klasifikasi Indonesia (BKI)
DIMENSION
Item Value
Length 26.00 m
Breadth 8.00 m
Depth 3.65 m
Accommodation 10 Crew
MACHINERY
Item Specification
Main Engine 2 × 1030 HP Mitsubishi Marine Diesel Engine
Model S6R2-T2MTK3L – 1030 PS @ 1400 RPM
Genset 2 × 50 kW Weichai
Gearbox 2 Units Dong-I DME 600BL (ratio 5.1:1)
EQUIPMENT
Equipment Quantity Description
Fuel Oil Transfer Pump 1 Unit —
Oily Water Separator 1 Unit —
Bilge Pump 1 Unit —
Sea Water Pump 1 Unit —
Fresh Water Pump 1 Unit —
Blower/Exhaust Engine Room: 2 units × 16” Air Axial Blower
Crew Compartment: 4 units × 10” Air Axial Blower
Galley: 1 unit × 10” Air Axial Blower
INTERNAL SYSTEM
System Specification
Electrical Work 1 Set AC/DC Switch Board
Complete electrical wiring including cable wiring, lighting, flood lights, navigation lights, immigration light, searchlight, main switchboard, distribution and control panels.
Piping, Valves and Fitting Work Complete piping work including air vent head, filling caps, and sounding pipe.

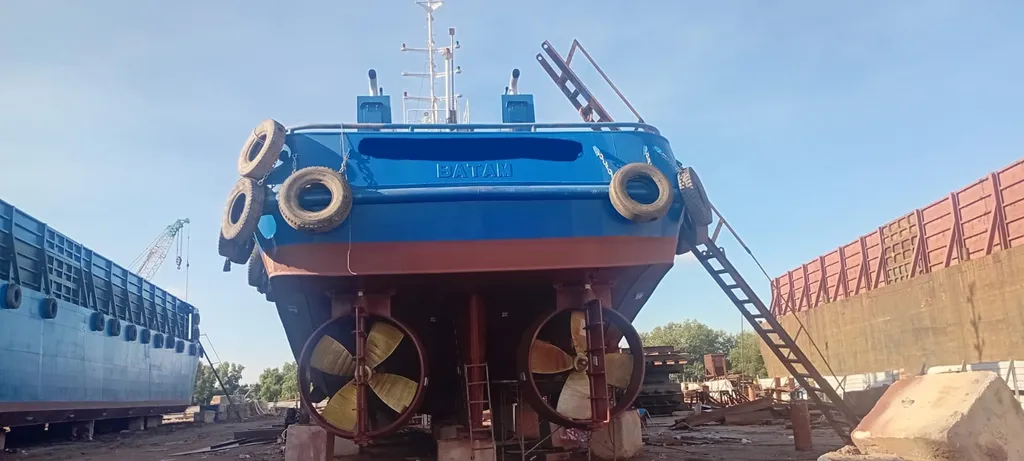

PROPULSION & STEERING SYSTEM
Component Specification
Steering System 1 Set Electro Hydraulic System complete with joystick and steering wheel
Propeller 2 Units × 4 Blades Fixed Type
Shaft 2 Units × 6.5” Stainless Steel Tail Shaft
Stern Tube L.H. & R.H. Water Lubricated with Cutless Bearing
Rudder Stock L.H. & R.H. Assembly with Angle Indicator
